Metal Injection Molding Polishing: Transforming Molded Parts into High

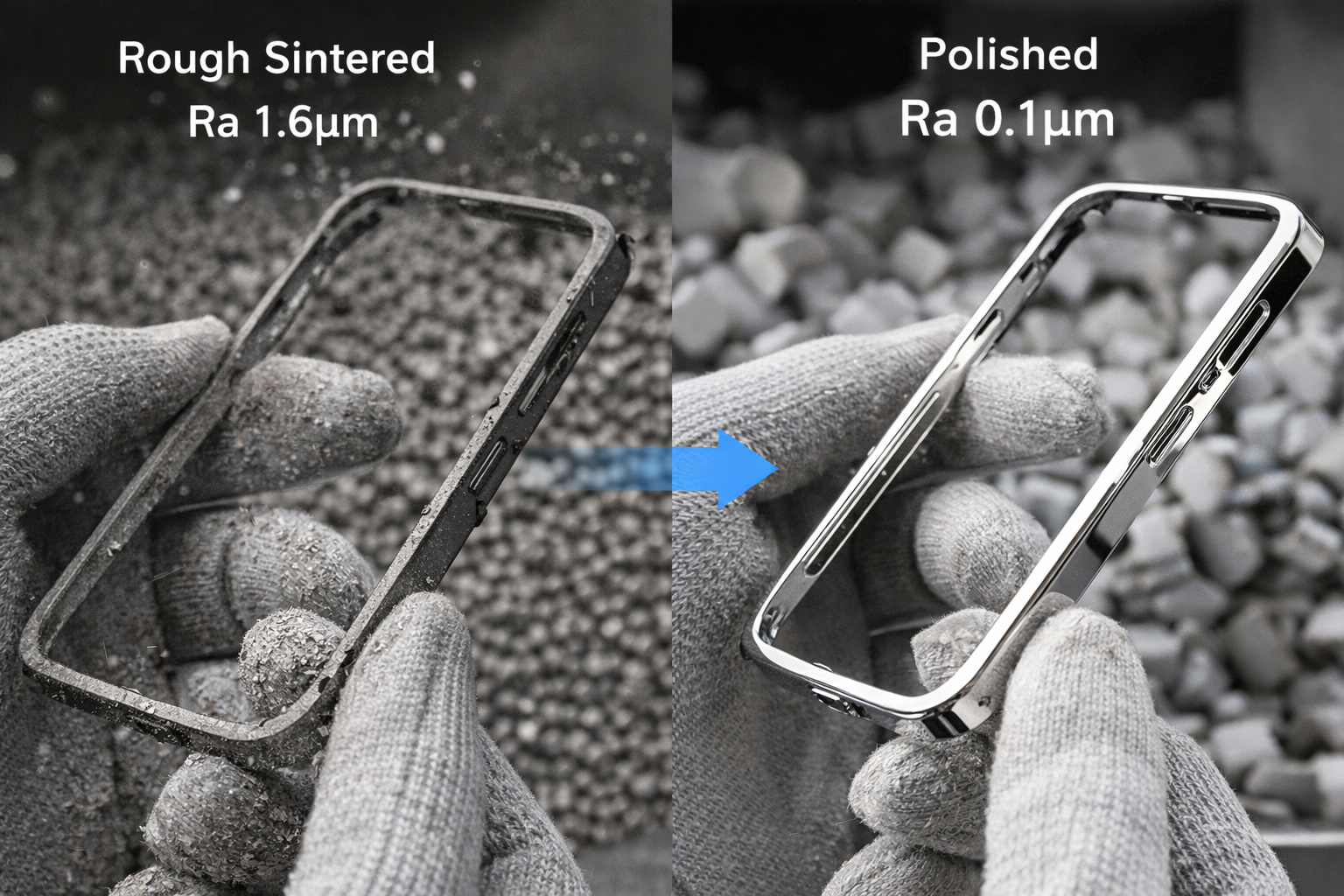

Typically, the MIM parts fresh out of the sintering furnace come with pitted surface and burrs everywhere. How to turn that "rough diamond" into a premium watch case or a sleek smartphone frame? The answer lies in Metal Injection Molding (MIM) Polishing—a high-precision post-processing technique that can take a part from a rough Ra 1.6μm down to a mirror finish of Ra 0.1μm with enhnaced aesthetics, wear resistance, and tactile feel.

This article will dive straight into everything you know about metal injection molding polishing—from the core principles to process selection and pro tips to help you avoid common pitfalls.

What is Metal Injection Molding Polishing?

Metal Injection Molding (MIM) is a multi-stage process from feedstock preparation and injection molding to debinding and sintering, followed by post-processing. Metal injection molding polishing happens right after sintering. It is a secondary finishing stage designed to eliminate microscopic pores and shrinkage pits left behind by the furnace. Simply put, while molding gives the part its shape, polishing gives it its soul—turning an 'engineered component' into a 'consumer-grade' masterpiece.

According to internal data from leading factories, over 80% of MIM parts undergo some form of polishing, especially in the 3C electronics, horology, and medical sectors where even the slightest imperfection is a dealbreaker.

Why Is Polishing Essential for MIM Parts?

Sintered MIM parts naturally have an "industrial" look. Even with high-precision molds, the sintering process causes shrinkage and surface diffusion that can leave micro-pitting and burrs. Metal injection molding polishing is the "rescue mission" that elevates a functional component to a premium product.

Visual & Tactile Upgrade: It removes pits, tool marks, and sharp edges, making the part safer and more comfortable to handle.
Functional Boost: It slashes the friction coefficient. For sliding components, this can effectively double the service life.
A Foundation for Further Coating: A smooth surface is essential for PVD coating, anodizing, or laser engraving. Without proper polishing, any surface defect will be amplified.

In the consumer electronics market, a polished finish can increase a part's value by 20-30%. For anything handheld or wearable, users have zero tolerance for a "cheap" feel.

Common Materials for Metal Injection Molding Polishing

Stainless steel, particularly grades 316L and 17-4PH, is the most common material for MIM polishing applications. These materials often exit the furnace with Ra 0.8-1.6μm and require polishing to achieve a mirror finish (Ra <0.1μm) and peak corrosion resistance.

Stainless Steel (Over 60% of the market):
- 316L: The go-to for medical implants and TWS earbud cases. Polishing creates a lasting mirror luster and helps form a Cr₂O₃ passivation layer to fight corrosion.
- 17-4PH: A high-hardness (HRC 40-44) powerhouse used in aerospace connectors and watch buckles. Polishing can reduce friction by 25%.
Tool Steels & High-Hardness Alloys: Like M2 High-Speed Steel. Here, polishing focuses on mating surfaces to ensure smooth mechanical operation.
Titanium Alloys (Ti-6Al-4V): Crucial for dental implants and turbine blades. Chemical or electrolytic polishing ensures a sterile, biocompatible surface at Ra 0.2μm.

Types of Metal Injection Molding Polishing

Choosing the wrong polishing method is a waste of time and money.Below is a comparative analysis derived from practical industrial feedback:

Mechanical Polishing: The Precision Mirror Finishing

Mechanical polishing remains the industry standard in metal injection molding polishing, delivering unmatched surface brilliance through progressive grinding. Starting with coarse 100-200 grit sandpaper, operators advance through 1200, 2000, and 3000 grit stages before applying W5-W0.5 diamond paste for final mirror finishing. Achieving Ra 0.05-0.2μm—equivalent to 8K stainless steel mirror quality—this method excels for premium visible surfaces like smartphone bezels and luxury watch cases.

Key Advantages: Superior gloss and precise localized control. Practical testing indicates that 316L stainless steel MIM components can achieve a 300% increase in light reflectivity, providing an ideal substrate for PVD rose gold plating.

Technical Limitations: The process requires highly skilled technicians and is less effective for complex internal cavities or blind holes. Additionally, the high labor intensity can impact the cost-efficiency of small-batch production.

Electropolishing: High-Volume Finishing for Complex Geometries

Electropolishing leverages electrochemical dissolution, positioning the MIM part as an anode in phosphoric acid electrolyte where microscopic peaks dissolve preferentially. This creates uniform Ra 0.1-0.3μm surfaces while forming a Cr₂O₃ passivation layer that boosts corrosion resistance by 30%. Ideal for stainless steel batch production like 3C electronics brackets and medical instrument handles.

Key Advantages: Include full-surface uniformity across external faces, internal threads, and holes, with high automation via dip-tank processing handling 100,000 pieces per batch. Factory validation on 17-4PH parts extends salt spray resistance from 48 to 168 hours.

Technical Limitations: Material-specific (stainless/titanium only), toxic electrolyte handling requires environmental certification, and equipment investment around $70K USD.

Abrasive Flow Machining (AFM): Internal Geometry Refinement

Abrasive Flow Machining targets MIM parts' most challenging internal geometries. High-viscosity media containing SiC abrasives gets pumped at 200-500 bar through holes, channels, and manifolds, honing surfaces inaccessible to traditional tools down to Ra 0.2-0.4μm. Essential for valves, nozzles, and turbine blade internals.

Key Advantages: Navigates tortuous flow paths and cross-drilled holes—think Mecanum wheel internals. Aviation testing shows Ti-6Al-4V MIM nozzles gaining 22% lower fluid drag and 35% fatigue life improvement after AFM.

Technical Limitations: Expensive ($2-7/part), ultra-sensitive parameters (viscosity, pressure, temperature), and long setup times.

Vibratory/Barrel Finishing: Cost-Effective Mass Deburring

Vibratory and barrel finishing dominate MIM high-volume basic refinement. Parts tumble with ceramic pellets, steel balls, and water-based compounds in vibrating bowls or hexagonal drums, mutually abrading away burrs and edges for Ra 0.4-0.8μm satin finishes suitable for hidden functional or structural components.

Key Advantages: Exceptional cost-efficiency, with processing costs ranging from $0.03 to $0.12 per part. The process supports high-volume throughput, capable of handling 50kg batches within 24-hour shifts. Industrial case studies in consumer electronics show that TWS earphone stainless steel brackets achieve 99.8% burr removal, rendering them fully assembly-ready.

Technical Limitations: This method is unable to produce a true mirror finish; components requiring high-precision aesthetic surfaces necessitates subsequent manual polishing.

Magnetic Polishing: High-Efficiency Precision Cleaning

Magnetic polishing employs magnetically-driven stainless steel pins (0.3-1.5mm diameter) oscillating at high frequency to scour micro-crevices, blind holes, and gear teeth, achieving Ra 0.2-0.5μm on small stainless MIM components like watch clasps and miniature gears.

Key Advantages: Contactless, stress-free finishing perfect for HRC>40 hardened 17-4PH parts, processing 5,000 pieces/hour. Medical validation: cardiovascular stents reach surgical cleanroom standards with zero residual particles.

Technical Limitations: Light refinement and cleaning only—heavy rough surfaces need vibratory pre-processing first.

Metal Injection Molding Polishing: Troubleshooting & Solutions

90% of MIM polishing defects—such as orange peel, residual scratches, and yellowing—result from improper parameters or preparation. These issues compromise both aesthetics and PVD coating quality. Standardized controls can stabilize yield rates above 98%.

Defect	Root Cause	Immediate Solution	Preventive Measure
Orange Peel	Excessive pressure; low sintered density.	Reduce to 2N; regrind with 400-grit; optimize sintering.	Verify post-sinter density >97%.
Residual Scratches	Skipping grit stages; media contamination.	Restart 100 to 3000-grit sequence; use ultrasonic cleaning.	Strict coarse-to-fine roadmap.
Surface Yellowing	Post-polish oxidation; no passivation.	20-min Electropolishing to form Cr₂O₃ film.	Passivate within 4 hours of polishing.
Surface Inconsistency	Hardness variation; binder traces.	Anneal (650°C/2h); categorize batches by hardness.	Batch hardness consistency control.
Internal Dead Zones	Inaccessible geometry.	Combine AFM (Abrasive Flow) and Magnetic Polishing.	Design molds with polishing access.
Mirror Clouding	Degraded diamond paste; high humidity.	Replace with W0.5 paste; maintain humidity <60%.	Airtight storage; weekly inspections.

Secrets to a Flawless Finish for MIM Components

The success of MIM polishing is in the details. Progression is key: always move from coarse to fine (e.g., 200 grit to 3000 grit) without skipping steps, or you’ll end up with stubborn, unfixable scratches. Maintain constant pressure (2-5 N) and controlled speeds to avoid overheating, which can warp thin-walled parts or induce material stress. Always clean parts thoroughly and assess the defect type (pores vs. burrs) before choosing your media.

Metal Injection Molding Polishing vs CNC Parts Polishing

The core difference between MIM polishing and CNC parts polishing lies in the base material condition and processing difficulty.

Comparison	MIM Polishing	CNC Polishing
Base Condition	Porous sintered surface (Ra 0.8-1.6μm)	Machined clean surface (Ra 0.4-0.8μm)
Processing Difficulty	High (pore cleaning + debinding marks)	Low (good base surface)
Mirror Finish Difficulty	Medium (requires pre-treatment + multi-stage)	Easy (direct fine polishing)
Batch Cost	Vibratory advantage ($0.07-0.28/part)	High per-piece ($0.42-1.12/part)
Optimal Volume	Medium-high volume (>1K parts)	Low volume (<500 parts)

Why XY-GLOBAL Rocks: Your One-Stop Precision Partner

Beyond expert MIM Polishing, XY-GLOBAL provides a full-loop manufacturing solution: from DFM (Design for Manufacturing) reviews to the final delivery of high-precision components. Our capabilities span high-precision mold R&D, complex geometry molding, material density optimization, and diverse secondary machining.

With a fully controlled manufacturing ecosystem, we offer 7-day prototyping, 30-day stable mass production, and 99% batch consistency. Whether you need high-end aesthetics for consumer electronics or biocompatible medical implants, XY-GLOBAL ensures systematic delivery from "micron-level precision" to "mirror-level finish."

Submit your drawings today for a professional DFM evaluation and a customized MIM solution.

Metal Injection Molding (MIM) Polishing FAQs:

1. Can MIM parts achieve a "Mirror Finish"?

Yes. However, it requires a multi-stage process. Because MIM parts have a fine, uniform grain structure, they respond exceptionally well to mechanical and chemical polishing. Achieving a true mirror finish usually involves a sequence of coarse grinding, fine tumbling, and a final high-luster buffing or electropolishing stage.

2. Does polishing affect the dimensional accuracy of MIM parts?

Polishing is a subtractive process, but accuracy is maintained through precise control. Mechanical polishing typically removes less than 0.02mm, while electropolishing facilitates a uniform dissolution of 0.005–0.01mm. Because vibratory finishing can result in up to 0.03mm of stock loss, engineers should incorporate a 0.05mm polishing allowance into critical design dimensions to offset these deviations.

3. What secondary surface treatments are available after polishing?

Polishing provides the ideal substrate for high-performance functional and decorative finishes:

Premium Aesthetics: Polishing + PVD Coating (TiN Gold, DLC, or Rose Gold).
Decorative Brilliance: Polishing + Nickel-Chrome Electroplating.
Functional Components: Vibratory Polishing + Laser Engraving.
Corrosion Resistance: Electropolishing + Passivation (essential for 316L/17-4PH).

4. How can I reduce polishing costs for high-volume MIM orders?

To optimize costs, consider the following:

Optimize Sintering: Ensure the best possible "as-sintered" finish to reduce the time needed in the polishing vibrator.
Batch Processing: Use centrifugal or vibratory finishing for mass production rather than manual labor.
Design for Finishing: Avoid deep narrow recesses or sharp internal corners that are difficult for polishing media to reach.
